EFRW 53′ 22 AWG Polystealth Antenna Wire Assembly
$40.00
- Description
- Additional information
- Reviews (0)
Description
Strong, rigid 22 AWG Polystealth wire cut to 53′ for use with an 9:1 End Fed Random Wave Antenna.

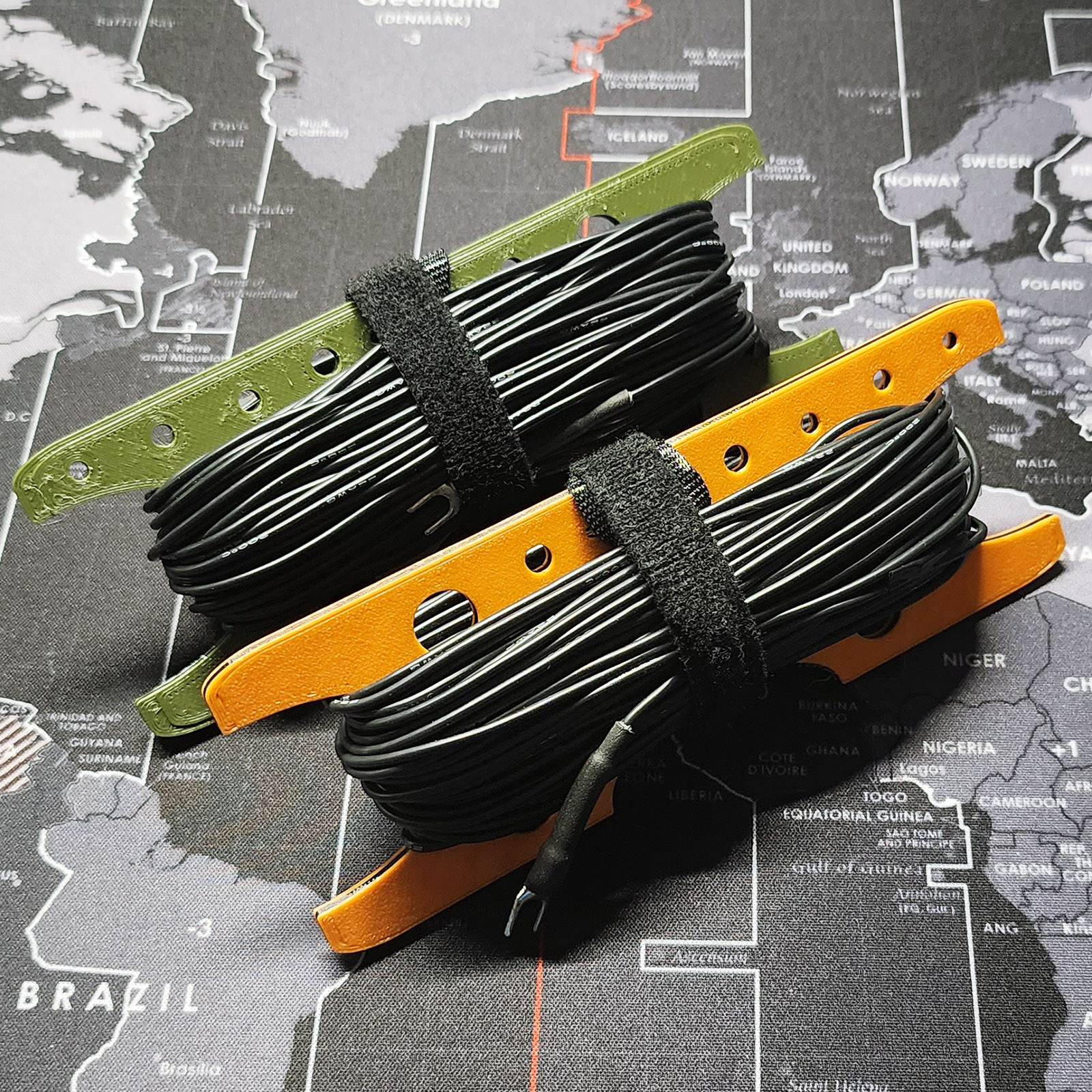

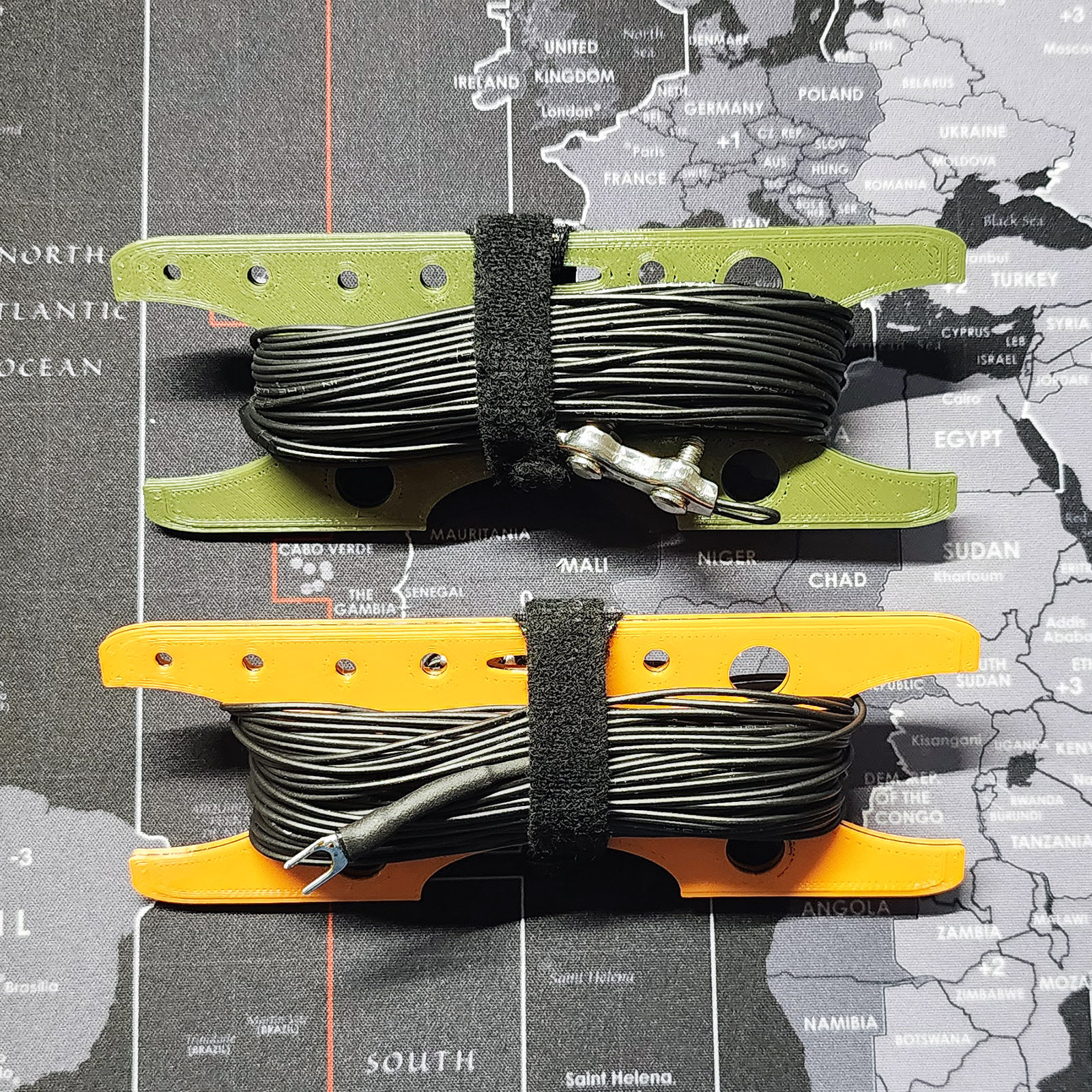

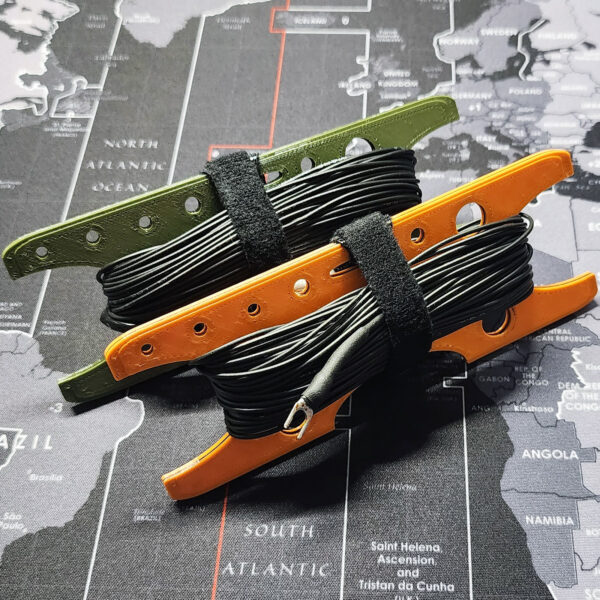

Wound on a Reliance Antennas Compact Winder with stainless steel hardware. Spade connector is soldered and double shrink wrapped.
SWR Chart After Tuning
| Frequency | 1.8 MHz | 3.7 MHz | 5.3 MHz | 7.1 MHz | 10.1 MHz | 14.2 MHz | 18.1 MHz | 21.2 MHz | 24.9 MHz | 28.5 MHz | 50.1 MHz |
| SWR | 1.5 | 1.4 | 1.2 | 1.1 | 1.5 | 1.1 | 1.9 | 1.2 | 1.1 | 1.7 | 1.1 |
This will ONLY work on an End Fed Random Wire (9:1) transformer.
This wire assembly WILL NOT an End Fed Half Wave antenna (49:1 or 64:1).
Additional information
| Weight | 110 g |
|---|---|
| Dimensions | 6 × 3 × 2 in |
| Wire Size | 22 AWG |
| Wire Length | 53' |
| Color | OD Green, Orange |
